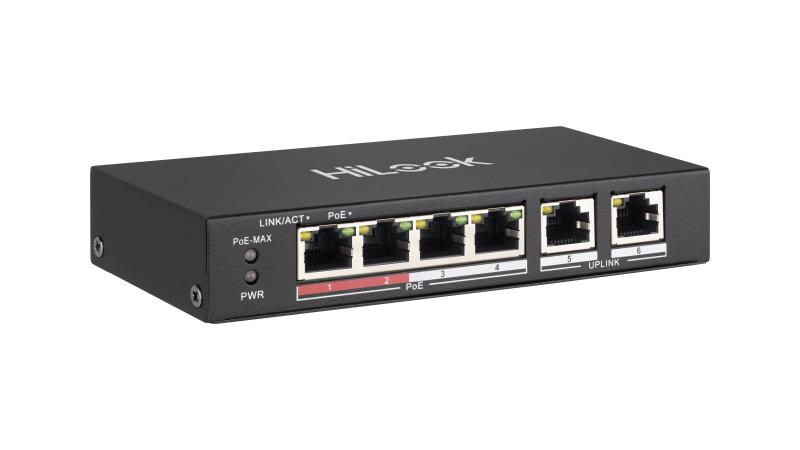

NS-0106MP-35
4-Port PoE Unmanaged Fast Ethernet Switch
| Kategori | Spesifikasi |
|---|---|
| Port | 4 × 10/100 Mbps PoE ports 2 × 10/100 Mbps uplink RJ45 ports RJ45, full duplex, MDI/MDI-X adaptive |
| Standar | IEEE 802.3, IEEE 802.3u, IEEE 802.3x PoE: IEEE 802.3af / IEEE 802.3at |
| Switching | Switching capacity: 1.6 Gbps Packet forwarding rate: 0.8928 Mpps Forwarding mode: Store-and-forward MAC address table: 4K Internal cache: 768 Kbits |
| Fitur PoE | Ports 1–4: IEEE 802.3af/at, hingga 30 W per port Total PoE budget: 35 W PoE pin: 1/2/3/6 dan 4/5/7/8 Long-range mode hingga 250 m (ports 1–4) High priority: ports 1 & 2 |
| Fisik | Material: metal, fanless design Dimensi: 145 × 68.45 × 25.6 mm Berat bersih: 0.265 kg Berat kotor: 0.52 kg |
| Lingkungan | Suhu operasi: –10 °C ~ 40 °C Suhu penyimpanan: –40 °C ~ 85 °C Kelembapan: 5% – 95% (tanpa kondensasi) |
| Daya | Power supply: 48 VDC, 0.8 A Konsumsi idle: < 5 W Konsumsi maksimum: 38 W |
| Keamanan & Sertifikasi | Surge protection: 6 KV (PoE ports) EMC: FCC, CE-EMC, RCM, IC Safety: UL, CB, CE-LVD Chemistry: RoHS, WEEE, REACH |
