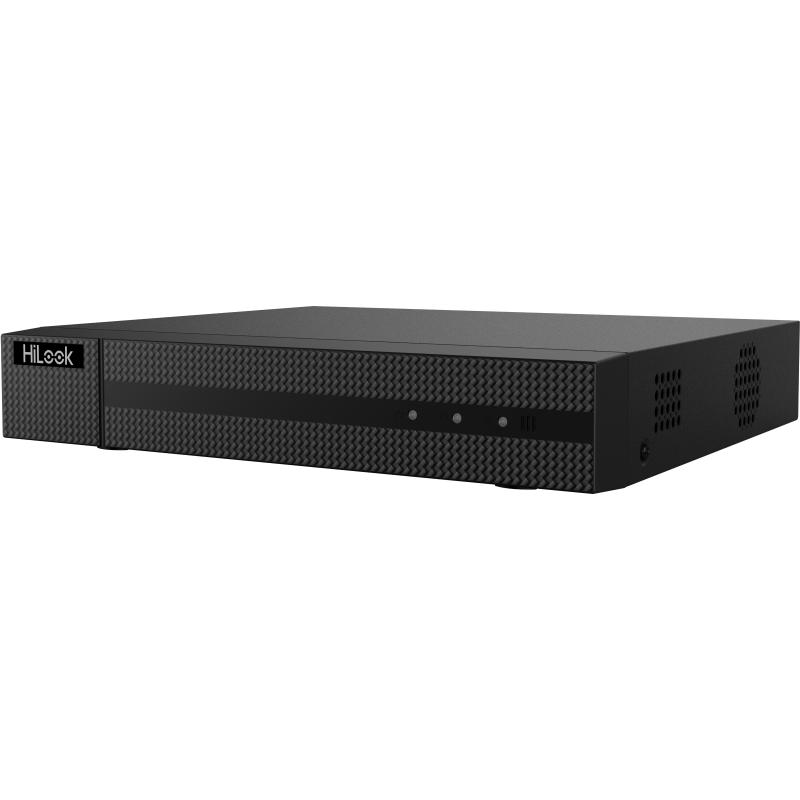

NVR-116MH-C(D)
16-ch 1U Network Video Recorder
| Kategori | Spesifikasi |
|---|---|
| Video Input | 16-ch IP video input Incoming bandwidth: 160 Mbps Outgoing bandwidth: 80 Mbps |
| Resolusi & Decoding | Recording: 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF Decoding: 1-ch @8MP (30 fps) / 3-ch @4MP (30 fps) / 6-ch @1080p (30 fps) Synchronous playback hingga 16-ch |
| Kompresi | Video: H.265+ / H.265 / H.264+ / H.264 Audio: G.711u / G.711a / G.722 / G.726 |
| Output Video | HDMI: 4K (4096×2160 / 3840×2160) @30Hz; 2K (2560×1440) @60Hz; 1920×1080 @60Hz; 1600×1200 @60Hz; 1280×1024 @60Hz; 1280×720 @60Hz VGA: 1920×1080 @60Hz; 1280×1024 @60Hz; 1280×720 @60Hz Mode: HDMI & VGA simultaneous |
| Audio | Output: 1-ch RCA (Linear, 1 kΩ) Two-way audio: 1-ch RCA (2.0 Vp-p, 1 kΩ) |
| Fitur Pintar | 4-ch Motion Detection 2.0 (Human/Vehicle Analysis) VCA: motion, line crossing, intrusion, dll. |
| Penyimpanan | 1 × SATA interface — hingga 8 TB per HDD |
| Antarmuka | 2 × USB 2.0 1 × RJ-45 10/100/1000 Mbps Ethernet (self-adaptive) Alarm In/Out: N/A |
| Jaringan | Remote connections: hingga 32 Protokol: TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP/HTTPS |
| Daya & Lingkungan | Power: 12 VDC, 1.5 A — konsumsi ≤ 10 W (tanpa HDD) Suhu kerja: −10 °C hingga 55 °C; RH 10%–90% |
| Dimensi & Berat | 265 × 225 × 48 mm (W × D × H) Berat: ≤ 1 kg (tanpa HDD) |
