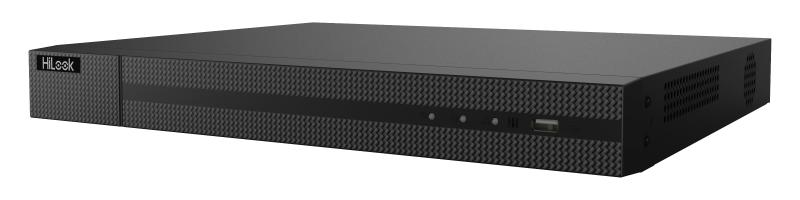

NVR-232MH-K
32-ch 1U AcuSense 4K Network Video Recorder
| Kategori | Spesifikasi |
|---|---|
| Video Input | 32-ch IP video input Incoming bandwidth: 256 Mbps Outgoing bandwidth: 160 Mbps |
| Resolusi & Decoding | Recording: hingga 12 MP Decoding: 2-ch@12MP / 4-ch@8MP / 8-ch@4MP / 16-ch@1080p Synchronous playback hingga 16-ch |
| Kompresi | Video: H.265+ / H.265 / H.264+ / H.264 Audio: G.711u / G.711a / G.722 / G.726 / AAC |
| Output Video | HDMI: hingga 4K (3840×2160 @30Hz) VGA: hingga 1920×1080 @60Hz Mode: HDMI/VGA independent |
| Audio | Input: 1-ch RCA Output: 1-ch RCA (2.0 Vp-p, 1kΩ) Two-way audio supported |
| Fitur AI | All-ch Motion Detection 2.0 2-ch Perimeter Protection (human/vehicle) Facial Recognition: 1-ch video stream / 4-ch picture stream Face Library: hingga 16 database, max 20,000 foto wajah |
| Penyimpanan | 2 × SATA interfaces Hingga 16 TB per HDD (total 32 TB) |
| Antarmuka | 2 × USB 2.0 (1 depan, 1 belakang) Alarm I/O: 4 in / 1 out 1 × RJ-45 10/100/1000 Mbps Ethernet |
| Jaringan | Remote connections: hingga 128 Protokol: TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP/HTTPS |
| Daya & Lingkungan | Power supply: 12 VDC, 3.3 A Konsumsi daya: ≤15 W (tanpa HDD) Suhu kerja: –10 °C hingga +55 °C Kelembapan: 10% – 90% |
| Dimensi & Berat | 385 × 315 × 52 mm (W × D × H) Berat: ≤ 1 kg (tanpa HDD) |
| Sertifikasi | CE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, RCM, UKCA, LOA, BIS |
