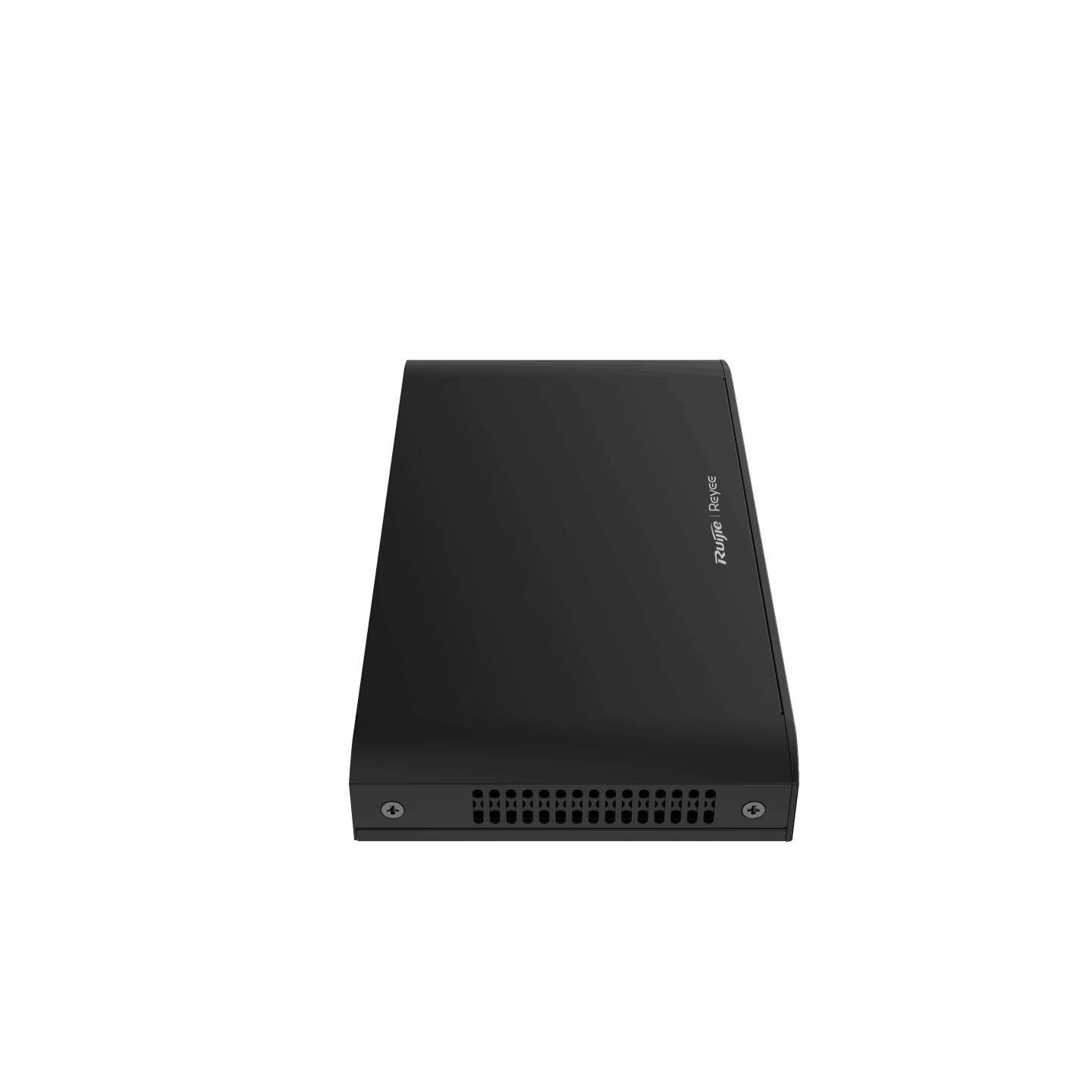

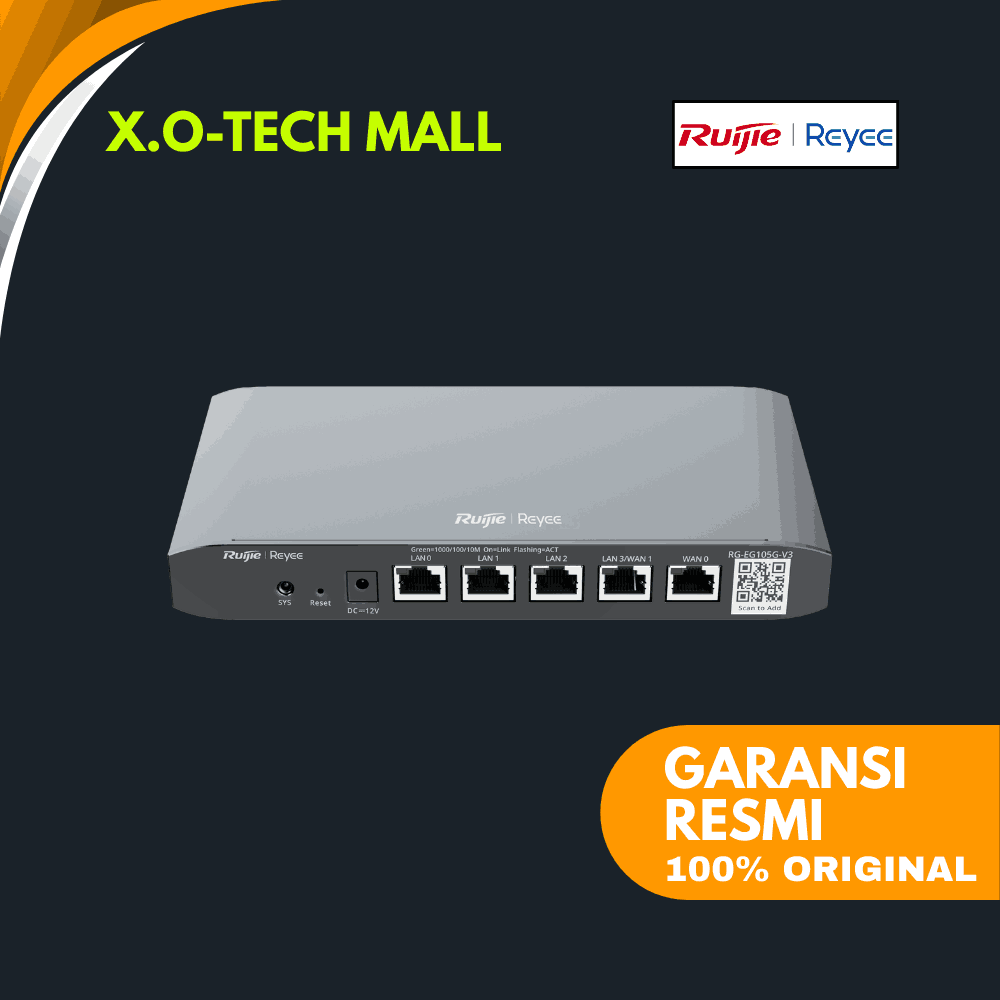

Reyee RG-EG105G-V3
Gigabit Cloud Managed Router – 5 Port • 100 Users • 600 Mbps (Turbo 1000 Mbps)
| Kategori | Detail |
|---|---|
| Model & Kapasitas | Model: RG-EG105G-V3 Pengguna bersamaan yang direkomendasikan: 100 Throughput: 600 Mbps (Mode Normal) • 1000 Mbps (Turbo Mode) |
| Port & Antarmuka | Total port: 5 × RJ45 Gigabit Port tetap: 1× WAN, 3× LAN • Port switchable: 1× LAN/WAN Kecepatan: 1× 10/100/1000BASE-T (WAN) • 4× 10/100/1000BASE-T (LAN) Dukungan Multi-WAN: hingga 2 WAN (failover & load balancing) |
| Performa & L2/L3 | VLAN: hingga 16 VLAN • Port-based VLAN Routing: Static, RIP/RIPng, OSPFv2/v3 NAT/NAPT, UPnP, DNS Proxy/Server, DHCP Server/Client |
| Keamanan & VPN | Stateful Firewall, ACL (Time-based & IPv6 ACL), IP-MAC Binding, Anti-DDoS dasar (SYN Flood, Smurf, dst.) VPN: IPSec, L2TP, PPTP, OpenVPN Tunneling Maks.: IPSec 8 • L2TP 8 • PPTP 8 • OpenVPN 16 Performa VPN tipikal: L2TP/PPTP 190 Mbps • OpenVPN 20 Mbps • IPSec 28 Mbps |
| Manajemen & Otentikasi | Ruijie Cloud (App & Web), eWeb, SNMP • Captive Portal & Custom Portal Otentikasi: Voucher Cloud, Local Portal, 802.1X, Password, SMS PPPoE Server: aktif • Maks. klien PPPoE aktif: 35 (akun hingga 50) |
| Kapasitas Manajemen Perangkat | Mode Router: hingga 32 perangkat Mode AC: 300 AP/NBS + 128 ES Switch |
| Hardware | CPU: Dual-core 880 MHz Memori: DDR3 128 MB • Flash: 32 MB Indikator: SYS (Hijau), LINK/ACT per port • Pendinginan: Fanless |
| Daya & Lingkungan | Konsumsi daya maks.: < 12 W • Adaptor: 12 V DC, 1 A (AC 100–240 V, 50/60 Hz) Suhu operasi: 0 – 40 °C • Kelembapan: 10–90% RH (non-condensing) Proteksi petir: Power ±2 kV (common), ±1 kV (differential) • Port: ±4 kV |
| Dimensi & Berat | Dimensi: 206.5 × 108.5 × 28 mm • Berat bersih: 0.406 kg Pemasangan: Desk-type (braket dinding & meja termasuk) |
| Isi Paket | 1× Router RG-EG105G-V3 • 1× Adaptor Daya • 1× Braket Wall-mount • 1× Braket Desk-mount • Dokumentasi |
