RG-NIS2100-4GT2SFP-HP

Rp2.938.000

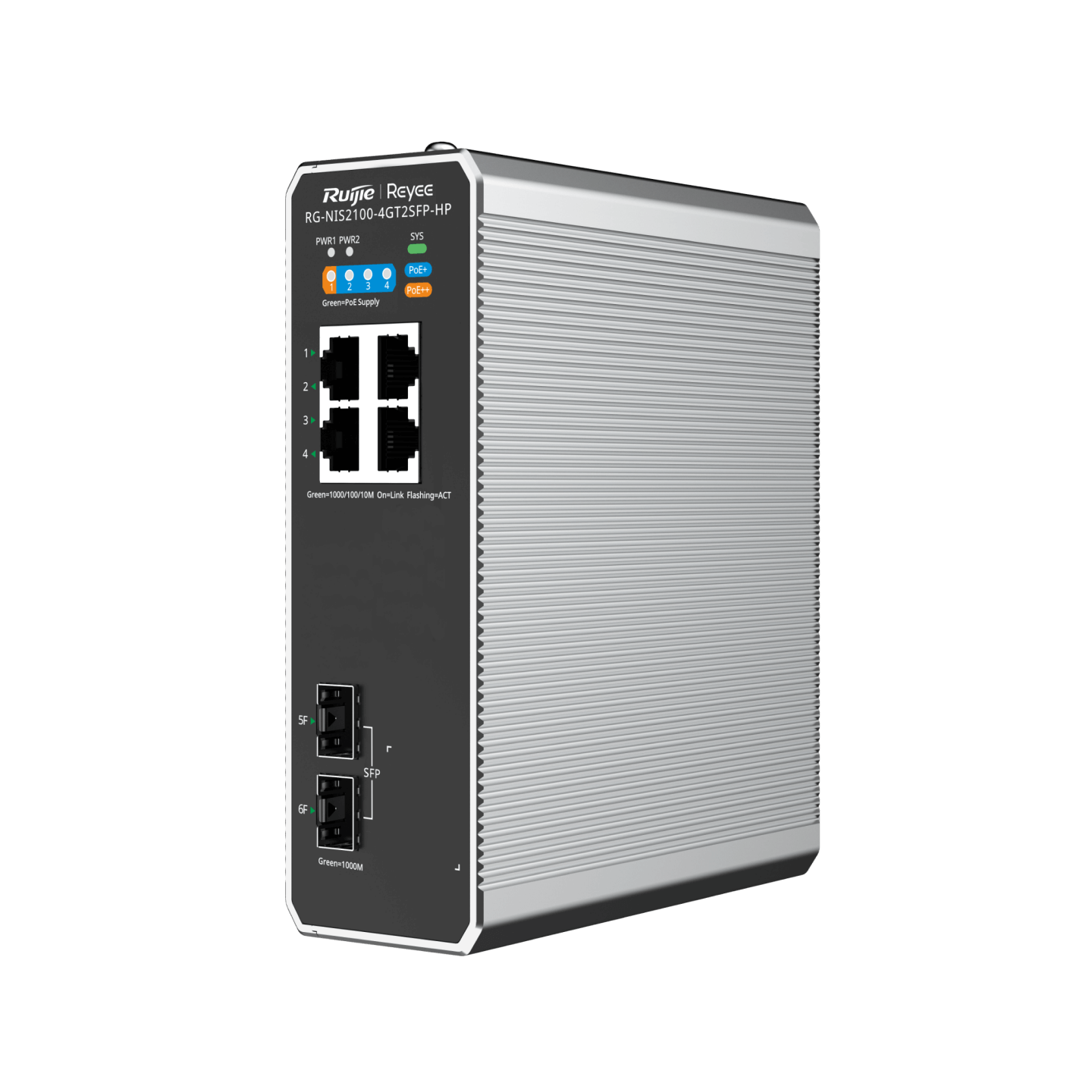

Ruijie Reyee RG-NIS2100-4GT2SFP-HP

6-port Industrial L2 Switch — 1× PoE++ (hingga 90 W), 3× PoE+, 2× SFP uplink, Cloud-managed

  • PoE fleksibel: 1× PoE++ untuk kamera/PTZ/heater, 3× PoE+, PoE budget default 108 W (opsi hingga 180 W)
  • Industrial-grade: −40 ~ +75 °C, IP40, surge port 6 kV, ESD 15 kV/8 kV, kasing aluminium
  • Performa L2: 12 Gbps switching, 8.9 Mpps forwarding, VLAN, QoS/rate-limit, SPAN, storm control
  • Ketersediaan: ERPS (G.8032), Extend mode 200 m @10 Mbps, isolasi port via DIP
  • Cloud/App/Web dengan SON & PoE watchdog — pemasangan cepat dan monitoring jarak jauh
  • Form-factor ringkas (50×155×130 mm), fanless, dukung DIN-rail/wall-mount

1× PoE++ + 3× PoE+
2× SFP Uplink
−40~+75 °C
IP40 • 6 kV
Cloud/App/Web

Hubungi Admin
Kategori: Tag: Brand:
Post Views: 4

Ruijie Reyee RG-NIS2100-4GT2SFP-HP

6-Port Cloud Managed Industrial Switch — 1× PoE++ + 3× PoE+ + 2× SFP Uplink

Kategori Spesifikasi

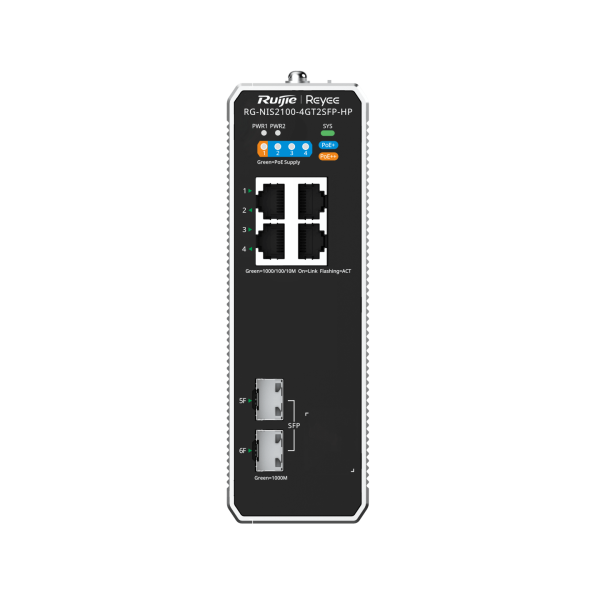

Port & Uplink 4× 10/100/1000BASE-T (RJ45) • 2× SFP 1Gbps uplink • Total 6 port Ethernet.
PoE 1× PoE++ (Port 1, hingga 90 W) • 3× PoE+ (Port 2–4) • Anggaran PoE default 108 W (dapat disetel via web hingga 180 W).
Pinout: Port 1 (1-2−, 3-6+, 4-5+, 7-8−); Port 2–4 (1-2+, 3-6−).
Mode Extend (jarak jauh) pada Port 3–4: 10 Mbps hingga 200 m (Cat5e).
Performa Switching Layer-2 • Switching capacity 12 Gbps • Forwarding rate 8.9 Mpps • Buffer 4.1 Mbit • MAC 8K.
Fitur L2 Jumbo frame 10,000 byte • VLAN ID 1–4094 (Maks. 16 VLAN) • Port-based VLAN • SPAN • Flow control •
Storm control (unknown unicast/broadcast/multicast) • Rate-limit per port (ingress/egress) • Cable test • DHCP snooping • Loop prevention • PoE watchdog.
Manajemen Web (HTTP) • Ruijie Cloud & Reyee App • SON (Self-Organizing Network) • Deteksi kamera IP.

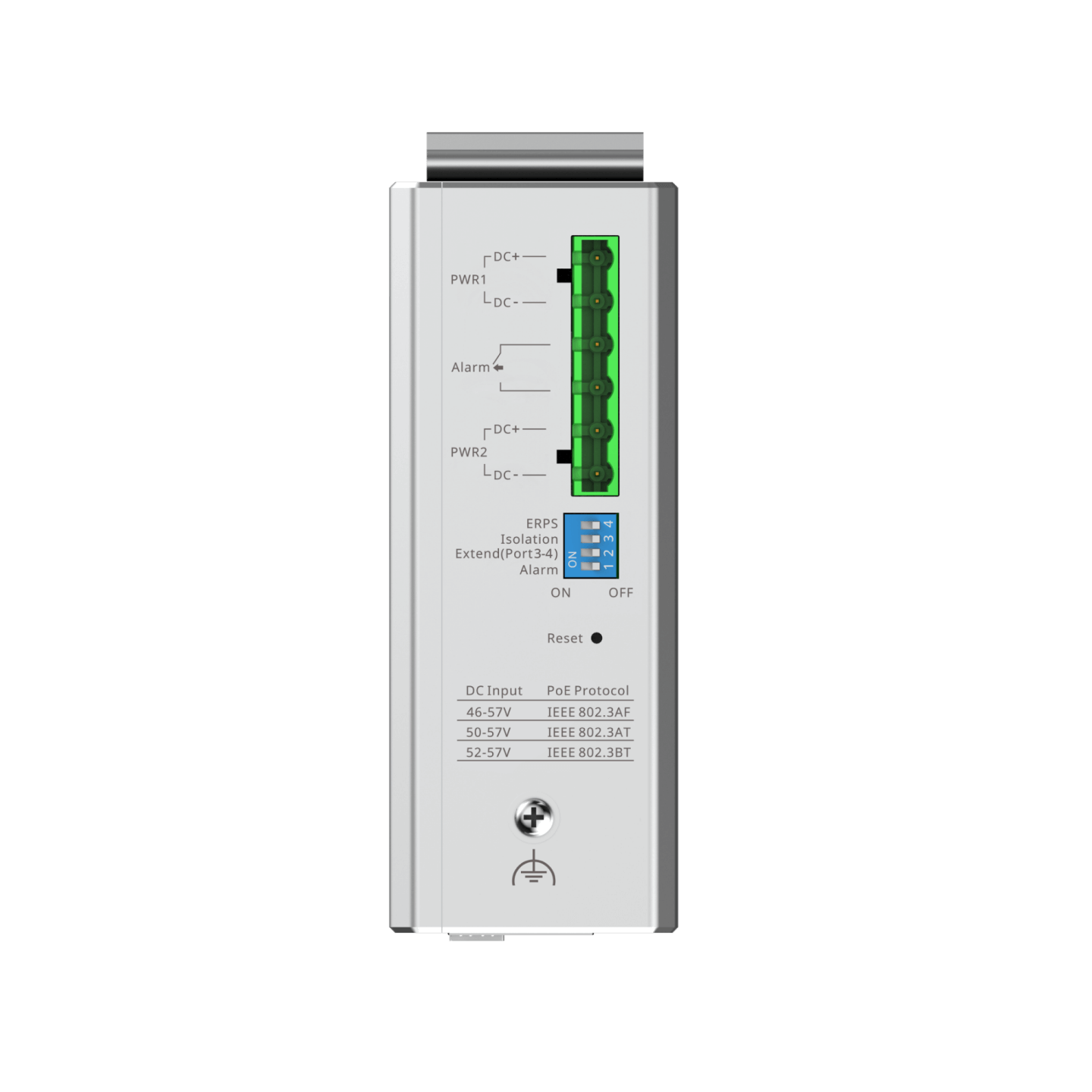

Ketersediaan & ERPS G.8032 ERPS • DIP switch: ERPS mode, Isolation mode (isolasi port atas/bawah), Extend mode (200 m @10 Mbps), Alarm mode (deteksi power-in posisi).
Catu Daya & Konsumsi Input DC terminal block (dua masukan): 46–57 VDC, arus terukur 4.2 A • Konsumsi ≤12 W (tanpa beban PoE); ≤192 W (PoE penuh).
Adaptor/PSU tidak termasuk, dibeli terpisah.
Proteksi Industri IP40 (partikel ≥1 mm) • Surge port umum 6 kV • Surge power 4 kV (mode umum) / 2 kV (diferensial) • ESD 15 kV (air), 8 kV (kontak) • EMC level 4 • Kasing alumunium berlapis.
Lingkungan Operasi Fanless • Suhu kerja −40 ~ +75 °C; simpan −40 ~ +85 °C • Kelembapan operasi 10–90% RH (non-kondensasi).

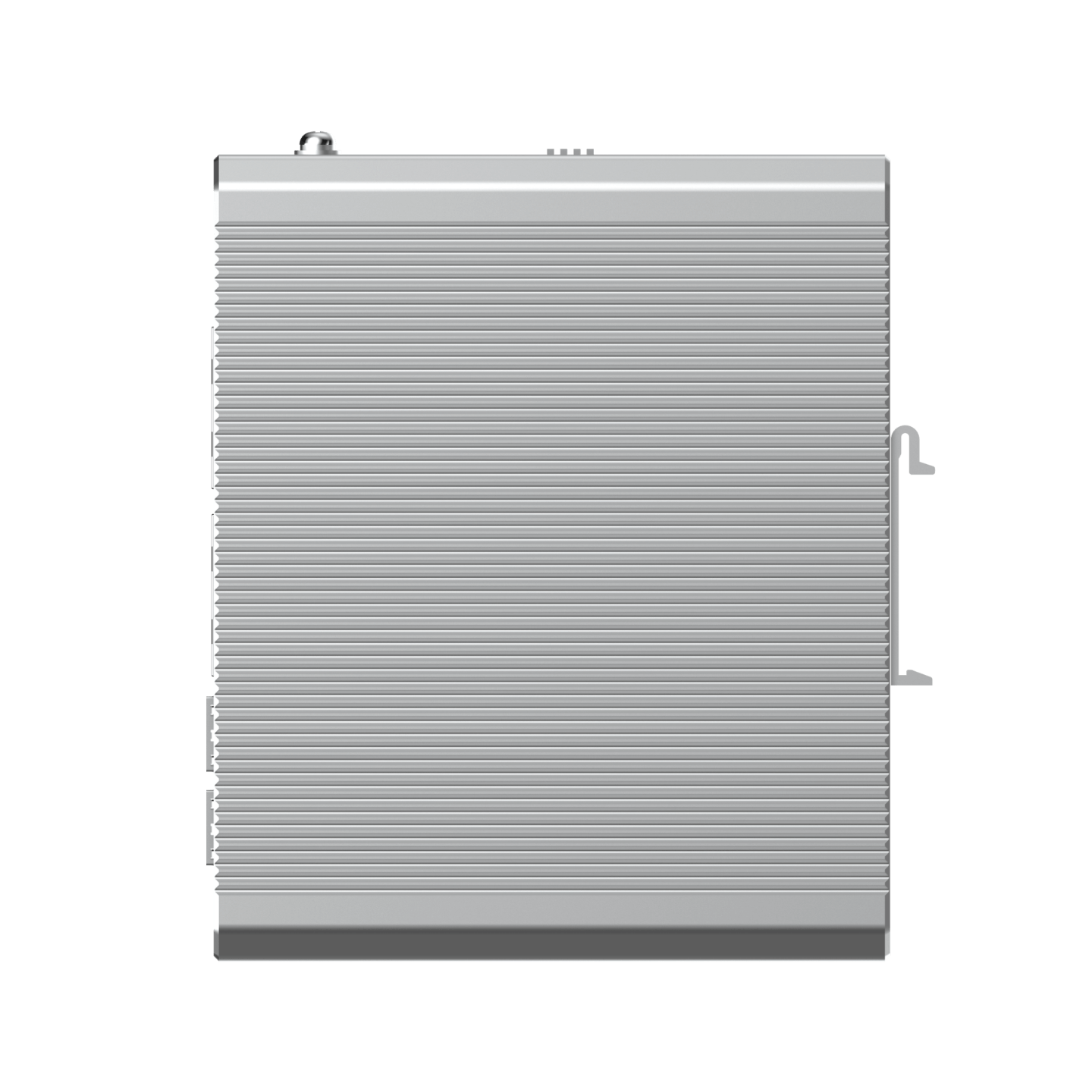

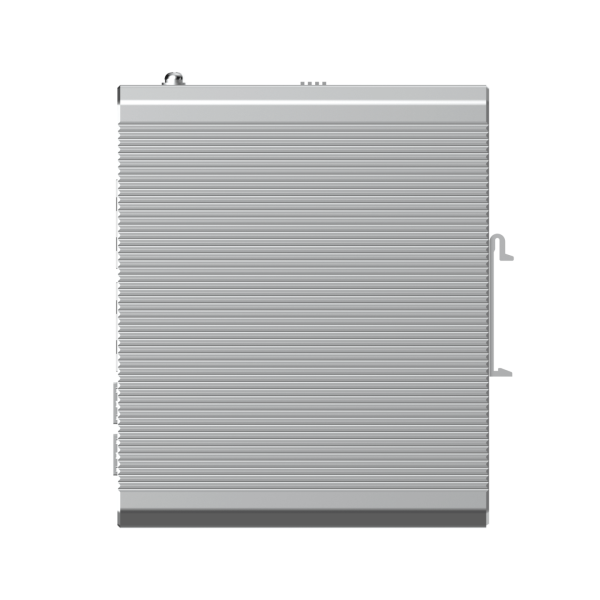

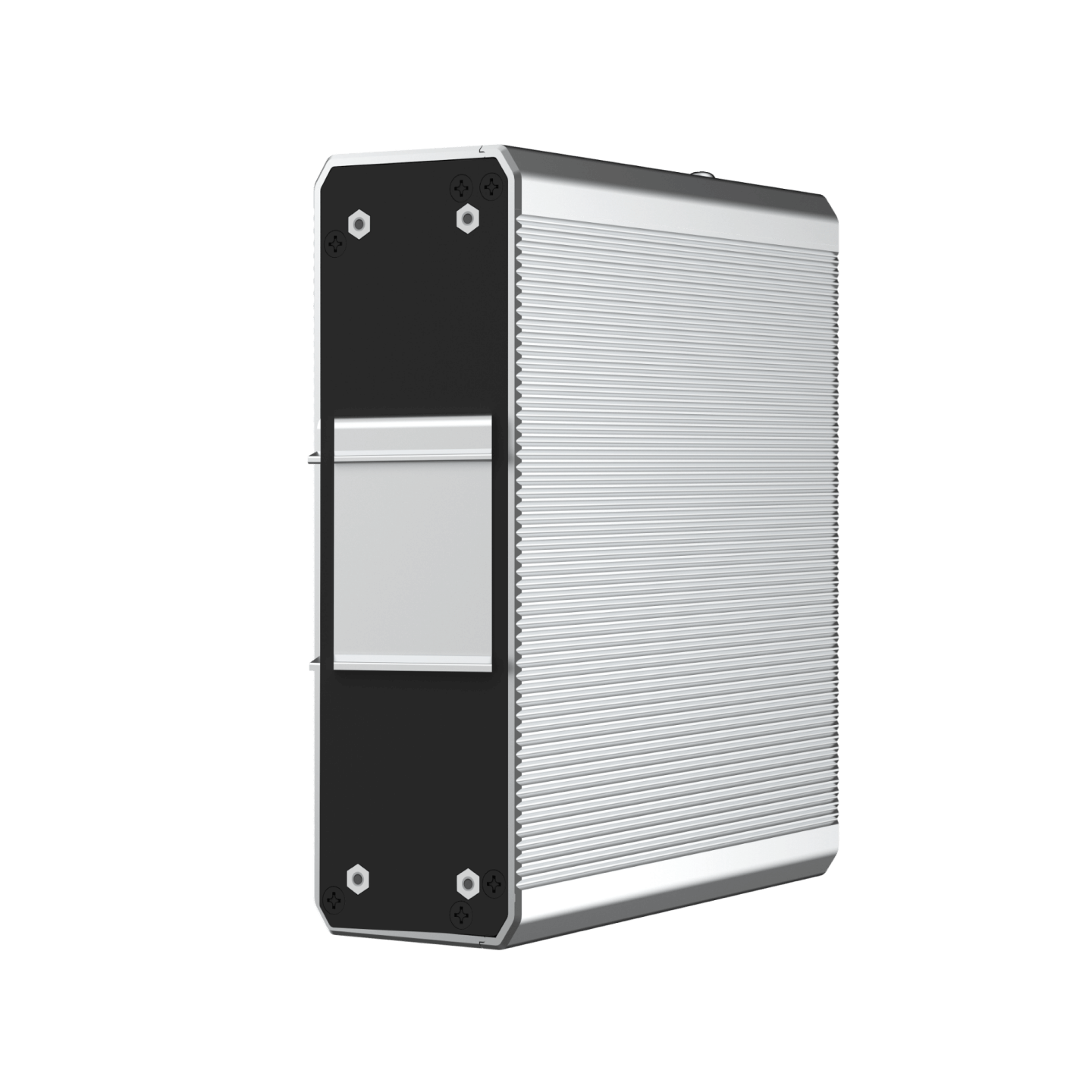

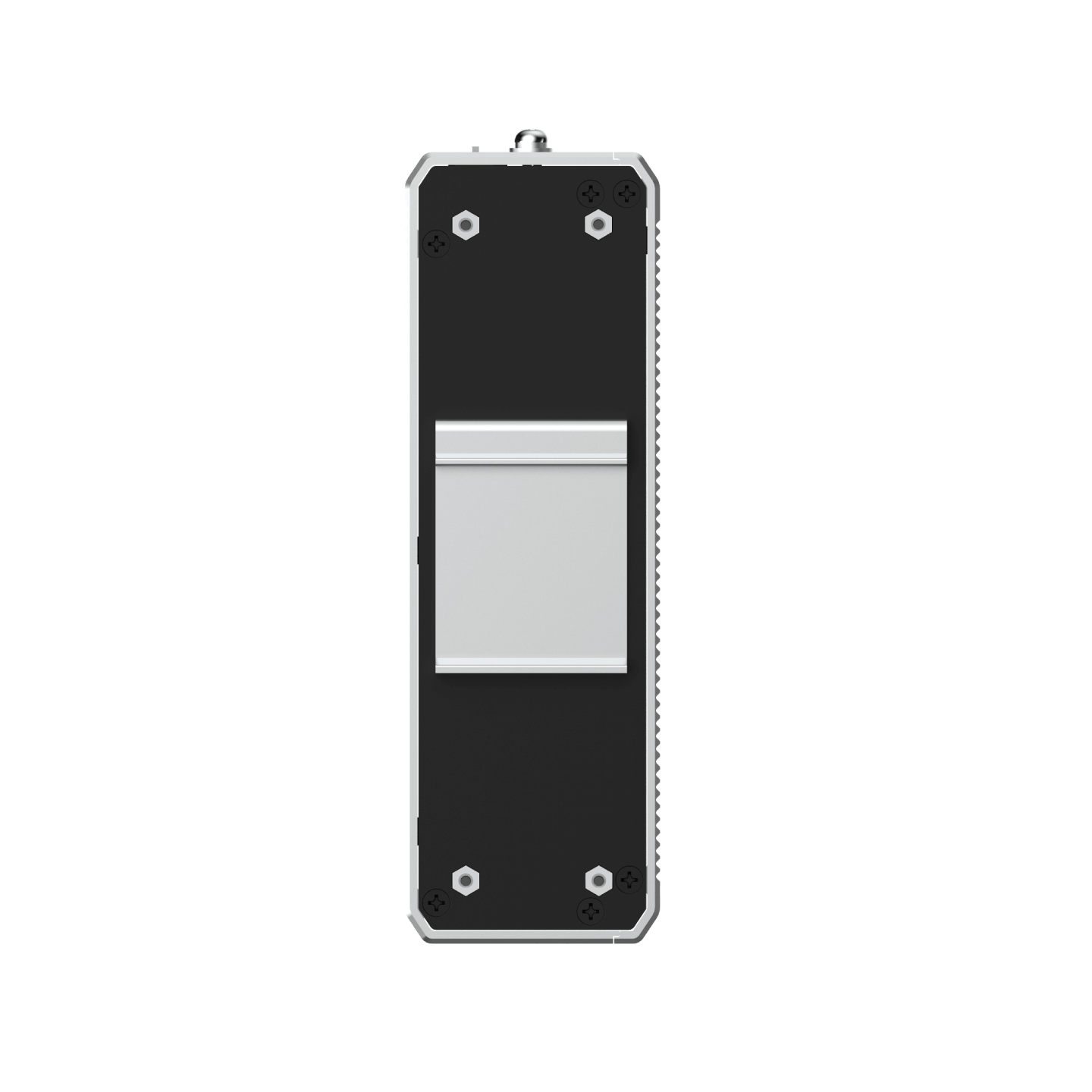

Fisik & Pemasangan Dimensi (W×D×H) 50×155×130 mm • Berat bersih 0.77 kg • Mounting: DIN-rail & wall-mount • Terminal block: Power1/Power2 (pin 1-2 & 5-6), Alarm (pin 3-4).
Isi Paket Unit RG-NIS2100-4GT2SFP-HP, 2× bracket wall-mount, 4× sekrup M3×8, Panduan instalasi, Kartu garansi; berat kirim ±1.08 kg.
Keandalan MTBF > 200.000 jam • Garansi 5 tahun • Sertifikasi CE.

*Spesifikasi dapat berubah mengikuti pembaruan firmware/produk & regulasi setempat.

Informasi Tambahan

Berat 770 gram
Dimensi 50 × 155 × 130 mm
