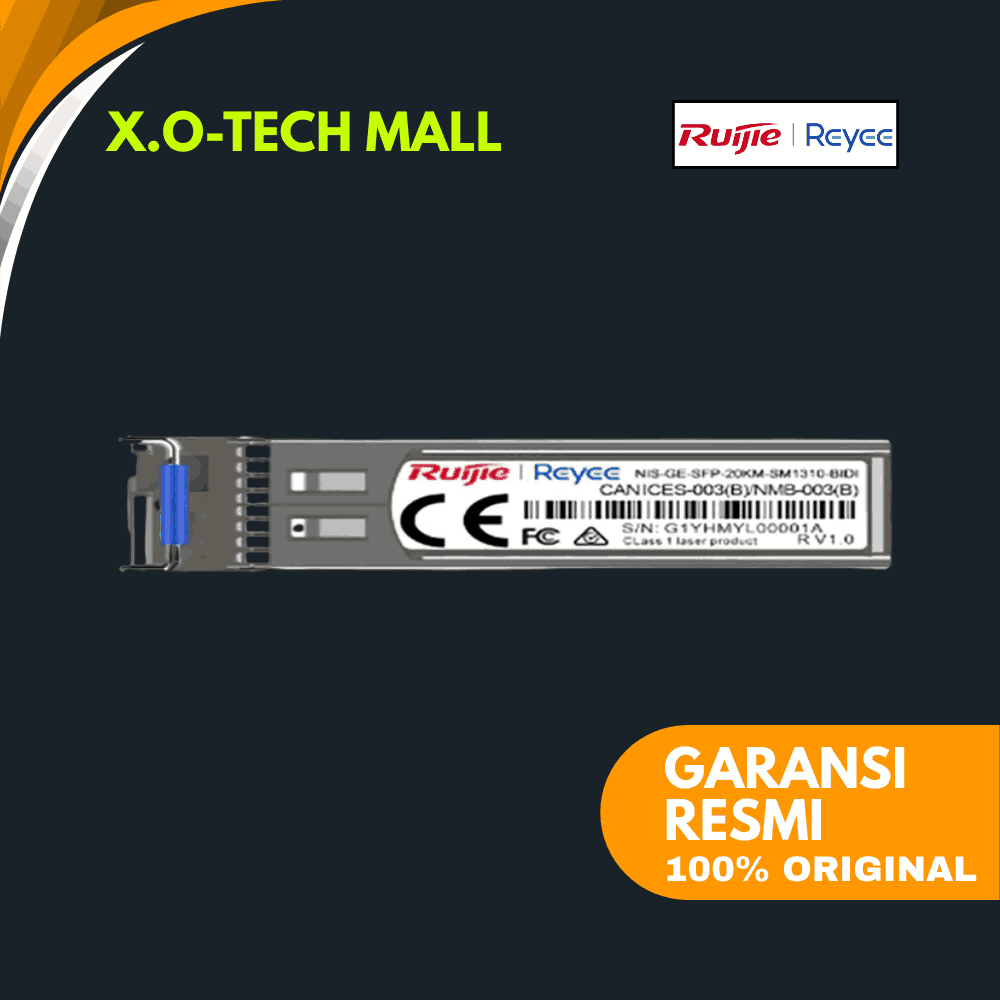

NIS-GE-SFP-20KM-SM1310-BIDI
Gigabit BiDi Optical Transceiver – TX1310 / RX1550, 20 km, Industrial
| Kategori | Detail |
|---|---|
| Standar & Form Factor | 1000BASE-LX BIDI (Gigabit Ethernet) SFP (mini-GBIC), hot-swappable |
| Wavelength | Transmit (TX): 1310 nm Receive (RX): 1550 nm |
| Fiber & Jarak | Tipe Fiber: Single-Mode Fiber (SMF) Core Size: 9/125 µm Jarak Maksimal: 20 km |
| Optik | Transmitter Power: –9 dBm (min) ~ –3 dBm (max) Receiver Sensitivity: –22 dBm (min), –3 dBm (max) Connector: LC simplex |
| Fitur | Mendukung DDM (Digital Diagnostic Monitoring) Industrial-grade (suhu –40 °C s.d. +85 °C) Hot-swappable |
| Lingkungan | Suhu Operasional: –40 °C ~ +85 °C Suhu Penyimpanan: –40 °C ~ +85 °C Kelembaban: 10% ~ 90% RH (non-condensing) |
| Dimensi & Berat* | Dimensi tipikal SFP: 56.5 × 13.5 × 8.5 mm (P × L × T) Berat: ±20–25 g |
| Garansi | Garansi pabrik: 5 Tahun |
