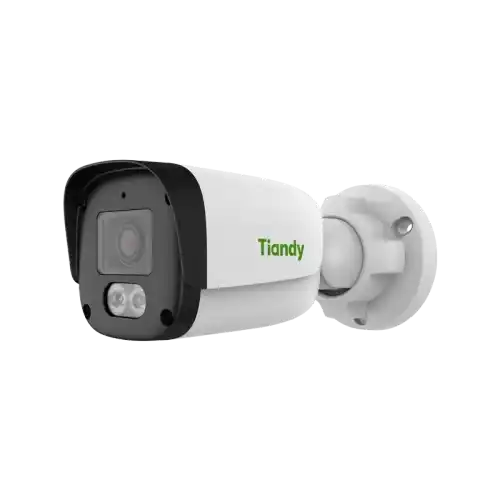

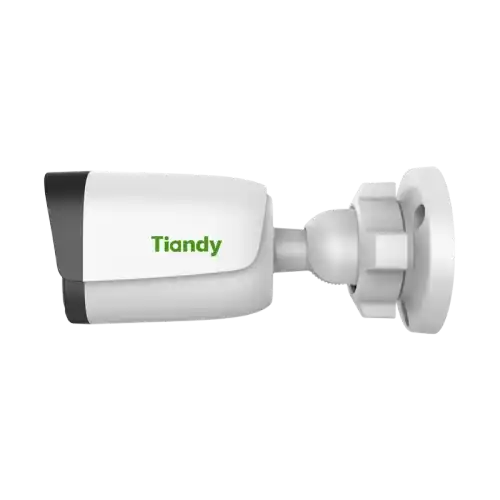

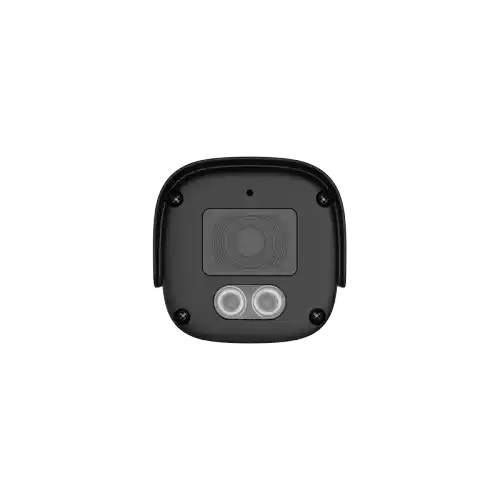

Tiandy TC-C321N
2MP Bullet Network Camera
| Kategori | Detail |
|---|---|
| Kamera | Image Sensor: 1/3″ CMOS Min. Illumination: Color 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux (IR ON) Shutter: 1s – 1/100,000s Day & Night: IR-cut filter auto (ICR) Smart IR: Yes WDR: DWDR S/N Ratio: >52 dB Angle Adjustment: Pan 0–360°, Tilt 0–80°, Rotate 0–360° |
| Lensa | Tipe: Fixed focal lens Focal Length: 2.8 mm Mount: M12 Aperture: F2.0 (Fixed) Field of View: H 93°, V 53°, D 104.8° |
| DORI | Detect: 40 m Observe: 15.9 m Recognize: 8 m Identify: 4 m |
| IR & Pencahayaan | IR LED: 2 pcs Jarak IR: hingga 30 m Wavelength: 850 nm |
| Video & Audio | Video Compression: S+265 / H.265 / H.264B/M/H Video Bit Rate: 32 kbps ~ 4 Mbps Audio Compression: G.711A / G.711U Audio Sampling: 8 kHz Max. Resolution: 1920×1080 @30fps Stream: Main & Sub (dual stream) BLC / HLC / AGC: Yes 3D DNR: Yes White Balance: Auto/Semi/Manual, berbagai mode Privacy Mask: 4 area Defog: Yes Built-in Mic: Yes |
| Jaringan | Protokol: RTSP, HTTP, TCP, UDP, ICMP, DHCP, DNS, NTP, IPv4, SSH, Unicast Kompatibilitas: ONVIF (Profile S/T), SDK, CGI, Milestone Remote Connection: ≤ 2 Client: Easy7 VMS Browser: IE10+, Chrome 57+, Firefox 52+, Edge 89+, Safari 11+ |
| Daya & Lingkungan | Power: PoE IEEE 802.3af, Max. 2.5W Proteksi: Surge 4000V, ESD 6000V Operasi: -30°C ~ 60°C, ≤95% RH Storage: -30°C ~ 60°C, 10–95% RH IP67 weatherproof |
| Fisik | Material: Metal + Plastik Dimensi: 164 × 73 × 73 mm Berat: 0.3 kg (gross) Package: 180 × 90 × 95 mm Aksesoris opsional: Junction Box TC-P54BM, A36 Mount |
