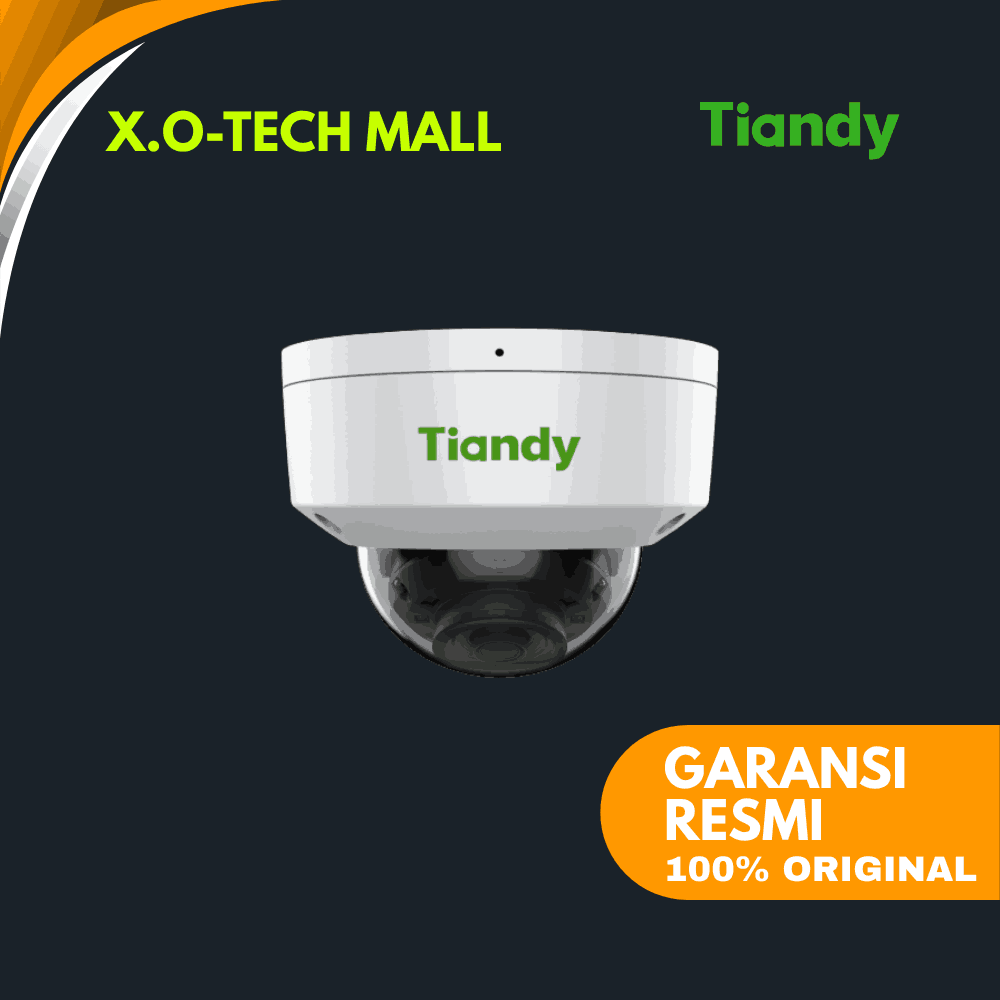

Tiandy TC-C34KN
4 MP Motorized Vari-Focal Starlight IR Dome Camera (2.8–12 mm)
| Kategori | Detail |
|---|---|
| Model | TC-C34KN — Spec: I3/A/E/Y/2.8–12mm/V4.2 |
| Kamera & Video | Sensor: 1/2.9″ CMOS Resolusi Maks: 2688 × 1520 @ 25 fps (4 MP) Shutter: 1/3 s – 1/100000 s • Day/Night: ICR auto switch Min. Illuminasi: 0.02 Lux @ F1.6 (warna, AGC ON), 0 Lux (IR ON) WDR: 120 dB True WDR • S/N Ratio: > 39 dB |
| Lensa & Sudut Pandang | Lensa: Motorized Vari-Focal 2.8–12 mm • Aperture F1.6 • Iris Fixed FOV: H 99.3° ~ 30.6° • V 53.4° ~ 17.2° • D 116.6° ~ 34.4° DORI (W/T): Deteksi 56.5 m / 165.5 m • Observasi 22.4 m / 65.6 m • Rekognisi 11.2 m / 33.1 m • Identifikasi 5.6 m / 16.5 m |
| IR & Audio | IR LED: 4 pcs, jarak hingga 30 m (850 nm) • Smart IR Audio: Built-in Mic • Kompresi: G.711A/U (8 kHz) |
| Kompresi & Streaming | Video: S+265 / H.265 / H.264B/M/H • Bitrate 32k ~ 4 Mbps Main Stream: 4 MP @ 25 fps, 1080p @ 25 fps, 720p @ 25 fps Sub Stream: CIF/D1 @ 25 fps Fitur: BLC / HLC / AGC / 3D DNR / Defog / ROI (8 zona) / Privacy Mask (4 area) White Balance: Auto / Semi-Auto / Manual (preset WB) |
| Jaringan & Kompatibilitas | Protokol: HTTP/HTTPS/TCP/IP/UDP/RTSP/DHCP/DDNS/NTP/FTP/QoS/IPv4/SSH, dll. Kompatibilitas: ONVIF Profile S/T/G, CGI, SDK, Milestone, P2P (≤ 2 koneksi) Client: Easy7 VMS • Mobile: EasyLive Plus |
| Antarmuka | 1 × RJ-45 (10/100 Mbps) Slot microSD hingga 512 GB Reset Button • RTC internal |
| Lingkungan & Proteksi | Operasional: –30 °C ~ +60 °C, RH ≤ 95% (non-condensing) Proteksi: IP66 • Surge 4 kV • ESD 6 kV |
| Daya | DC12V ±25% (Max 6.5 W) • PoE (IEEE 802.3af) (Max 7 W) |
| Dimensi & Berat | Dimensi Kamera: 120 × 120 × 96 mm (P × L × T) Dimensi Paket: 140 × 140 × 120 mm Berat: 0.5 kg |
