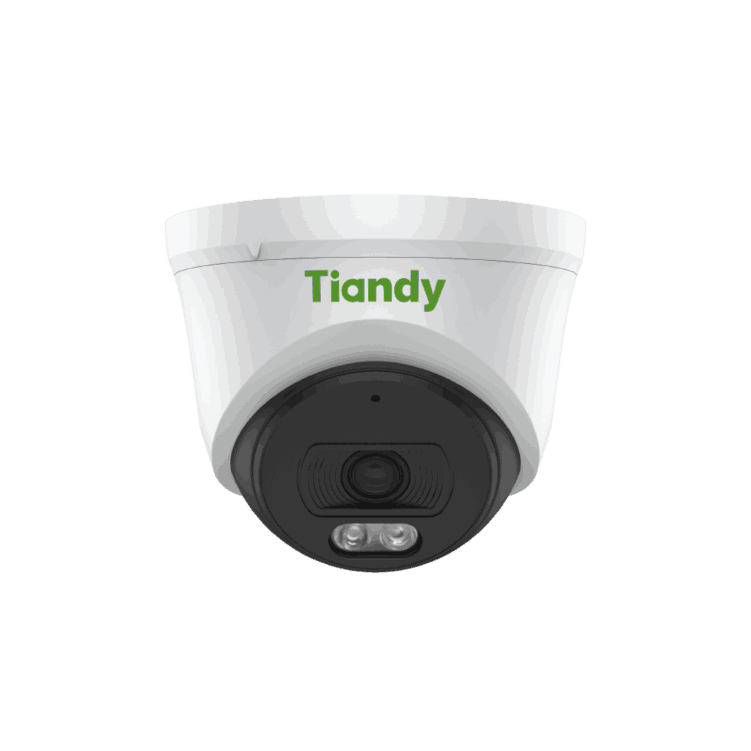

Tiandy TC-C34XN
4 MP Fixed Starlight IR Turret Camera (2.8 mm)
| Kategori | Detail |
|---|---|
| Kamera & Video | Sensor: 1/3″ CMOS Resolusi: 2560 × 1440 @ 20 fps:contentReference[oaicite:1]{index=1} Kompresi: S+265 / H.265 / H.264:contentReference[oaicite:2]{index=2} Min. Iluminasi: 0.02 Lux (warna @ F1.6), 0 Lux (IR ON) WDR: Digital WDR • S/N > 40 dB:contentReference[oaicite:3]{index=3} |
| Lensa & FOV | Lensa fixed 2.8 mm, F1.6 (M12):contentReference[oaicite:4]{index=4} Field of View: H 92.8°, V 52.2°, D 106.5°:contentReference[oaicite:5]{index=5} Sudut: Pan 0–340°, Tilt 0–75°, Rotate 0–360°:contentReference[oaicite:6]{index=6} DORI: Detect 56 m • Observe 22.2 m • Recognize 11.2 m • Identify 5.6 m:contentReference[oaicite:7]{index=7} |
| IR & Audio | IR LEDs: 2 • Jarak hingga 30 m • Wavelength: 850 nm:contentReference[oaicite:8]{index=8} Audio: Built-in Mic • Kompresi: G.711A/U • Sampling Rate: 8 kHz:contentReference[oaicite:9]{index=9} |
| Fitur Gambar | BLC, HLC, AGC, 3D DNR, Defog, Privacy Mask (4 regions), OSD:contentReference[oaicite:10]{index=10} |
| Jaringan & Kompatibilitas | Protokol: HTTP, TCP/IP, UDP, ICMP, DHCP, DNS, NTP, IPv4, Telnet, Unicast:contentReference[oaicite:11]{index=11} Kompatibilitas: ONVIF (Profile S/T), CGI, Milestone • Remote ≤ 2 pengguna:contentReference[oaicite:12]{index=12} |
| Lingkungan & Daya | Power: PoE (802.3af, max 6 W):contentReference[oaicite:13]{index=13} Suhu Operasi: –30 °C to +60 °C, Humidity ≤ 95%:contentReference[oaicite:14]{index=14} Proteksi: Surge 2000 V, Lightning ESD 6000 V:contentReference[oaicite:15]{index=15} |
| Fisik & Pengiriman | Boundary Dim: 117 × 117 × 96 mm Package Dim: 140 × 140 × 120 mm Net Weight: 0.24 kg • Gross Weight: 0.34 kg:contentReference[oaicite:16]{index=16} |
