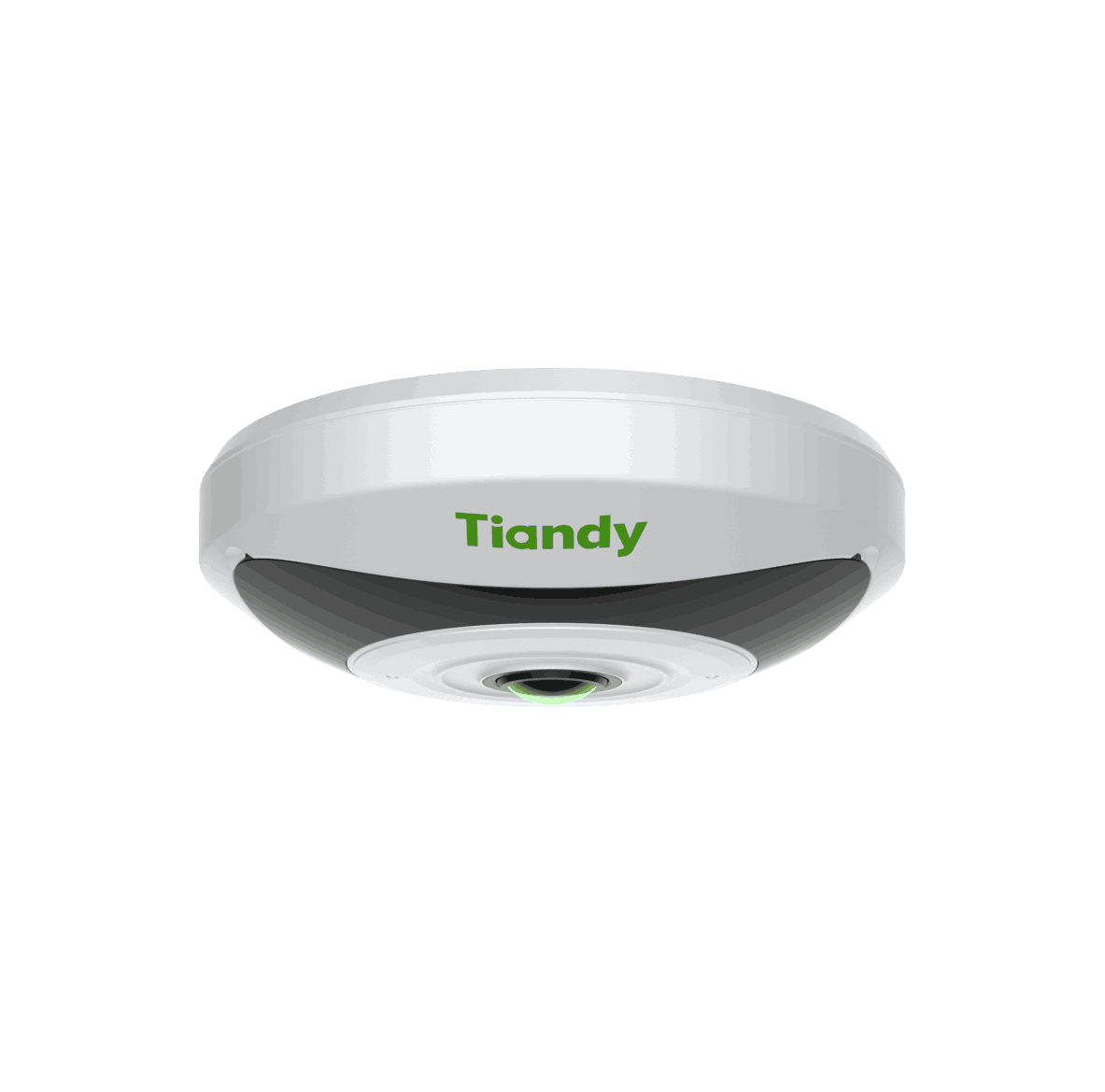

Tiandy TC-C35VN
5 MP Fixed IR Fisheye Camera (1.4 mm)
| Kategori | Detail |
|---|---|
| Kamera & Video | Sensor: 1/2.7″ CMOS Resolusi Maks: 2592 × 1944 @ 30 fps Kompresi: S+265 / H.265 / H.264 / MJPEG :contentReference[oaicite:1]{index=1} Min. Illum: 0.02 Lux (warna @ F2.0), 0 Lux (IR ON) WDR: 120 dB • S/N > 39 dB :contentReference[oaicite:2]{index=2} |
| Lensa & FOV | Lensa tetap 1.4 mm, F2.0 (M12) :contentReference[oaicite:3]{index=3} Bidang pandang: 180° (H/V/D) – fisheye :contentReference[oaicite:4]{index=4} DORI: Detect 24 m • Observe 9 m • Recognize 4.8 m • Identify 2.5 m :contentReference[oaicite:5]{index=5} |
| IR & Audio | IR LED: 3 pcs • Jarak hingga 30 m @ 850 nm :contentReference[oaicite:6]{index=6} Audio: Built-in Mic • Kompresi G.711A/U, ADPCM, AAC • Sampling 8/32/48 kHz :contentReference[oaicite:7]{index=7} |
| Fitur Cerdas & Gambar | BLC, HLC, AGC, 3D DNR, Privacy Mask (4 area), OSD, Defog Analitik: Tripwire, Perimeter, Double Tripwire, Heatmap :contentReference[oaicite:8]{index=8} |
| Jaringan & Penyimpanan | Protokol: HTTP, TCP/IP, UDP, DHCP, DNS, RTSP, FTP, SMTP, NTP, 802.1X, QoS, IPv4/IPv6, dan lainnya :contentReference[oaicite:9]{index=9} Dukungan: ONVIF Profile S/T/G, Milestone, Easy7, EasyLive Plus; ANR dengan SD (≤512 GB) :contentReference[oaicite:10]{index=10} |
| Daya & Lingkungan | Power: DC 12V ±25% (max 8.5 W); PoE (802.3af) max 9.5 W :contentReference[oaicite:11]{index=11} Suhu Operasi: –40°C ~ 65°C, ≤ 95% RH (non-condensing) :contentReference[oaicite:12]{index=12} Proteksi: Surge 4000 V; ESD 6000 V :contentReference[oaicite:13]{index=13} |
| Dimensi & Berat | Dimensi: 122 × 122 × 39 mm (L × W × H) Berat Bersih: 0.26 kg • Berat Kotor: 0.416 kg :contentReference[oaicite:14]{index=14} |
