TC-P3S010 10 Channel Network PoE Switch H

TC-P3S010 10 Channel Network PoE Switch H

Rp499.000

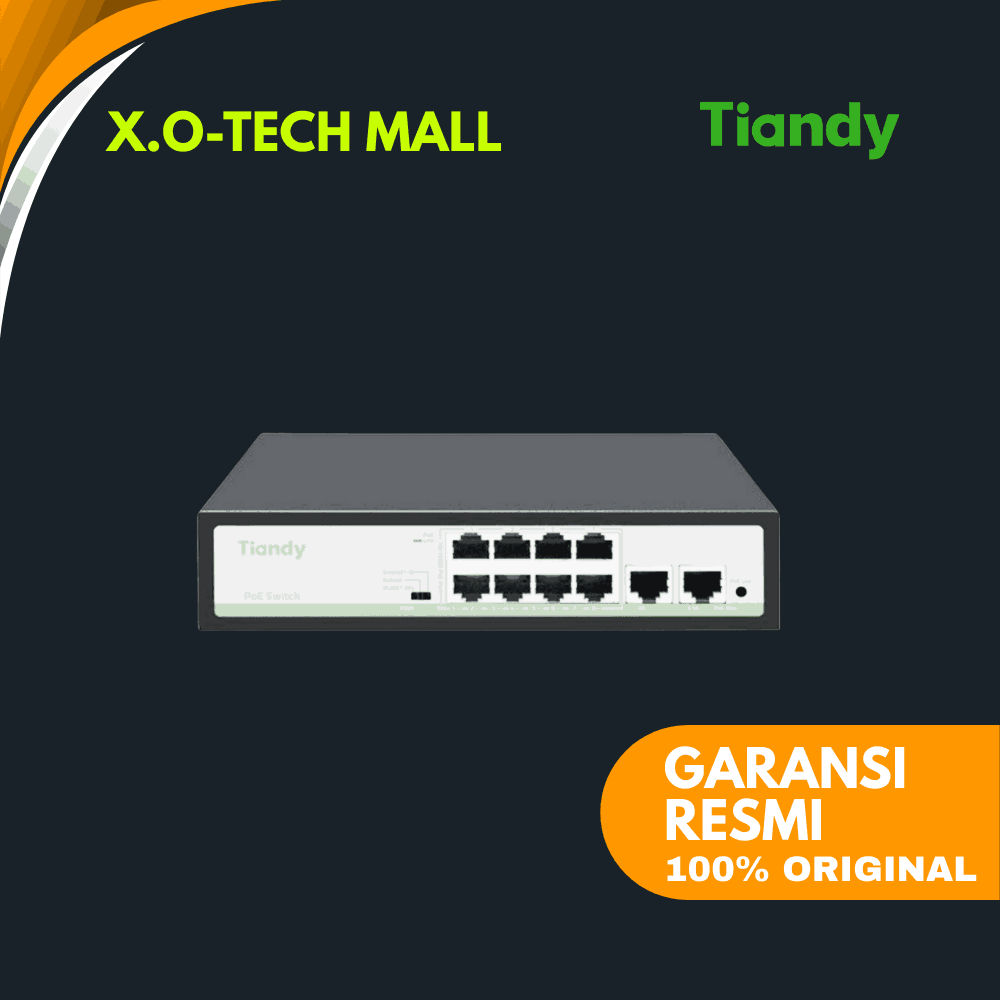

Tiandy TC-P3S010 (Gigabit)

10-Channel Gigabit PoE Switch

  • 8 × PoE Ports (10/100 Mbps) + 2 × Gigabit RJ45 Uplink Ports (100/1000 Mbps)
  • Flow control: Full-duplex IEEE 802.3x, Half-duplex backpressure
  • Mekanisme switching: Store-and-Forward
  • Panel indikator untuk monitoring status & analisis kegagalan
  • Dilengkapi proteksi Lightning Surge untuk keamanan perangkat
  • Cocok untuk IP Camera / NVR / Router skala menengah

10 Port
8 PoE + 2 Gigabit
Store-and-Forward
IEEE 802.3x
Surge Protection

Hubungi Admin
Kategori: Tag: Brand:
Post Views: 24

Tiandy TC-P3S010 (Gigabit)

10-Channel Gigabit PoE Switch (8 PoE + 2 Uplink)

Kategori Detail
Port 8 × PoE 10/100 Mbps + 2 × RJ45 Uplink (100/1000 Mbps) :contentReference[oaicite:2]{index=2}
Standar IEEE 802.3 / 802.3u / 802.3ab / 802.3x dengan port adaptif 10/100/1000 Mbps :contentReference[oaicite:3]{index=3}
Fitur Khusus PoE Priority (QoS), Auto MDI/MDIX, store-and-forward, mode VLAN/Default/Extend via DIP switch, Surge Protection (4 kV CM / ESD 8 kV air, 6 kV contact) :contentReference[oaicite:4]{index=4}
Performa Bandwidth: 5.6 Gbps • Throughput: 4.166 Mpps • Packet Buffer: 448 Kbit • MAC Table: 2K entries :contentReference[oaicite:5]{index=5}
Lingkungan & Daya Suhu operasi: –10 °C ~ +50 °C, AC 100–240 V; Board ~10 W, PoE total max 90 W (52 V / 1.92 A) :contentReference[oaicite:6]{index=6}
Dimensi & Berat Produk: **200 × 118 × 44 mm** • Paket: **245 × 190 × 60 mm**
Berat bersih: **0.69 kg (~690 g)** • Berat kotor: **0.98 kg (~980 g)** :contentReference[oaicite:7]{index=7}

Informasi Tambahan

Berat 980 gram
Dimensi 245 × 190 × 60 cm
