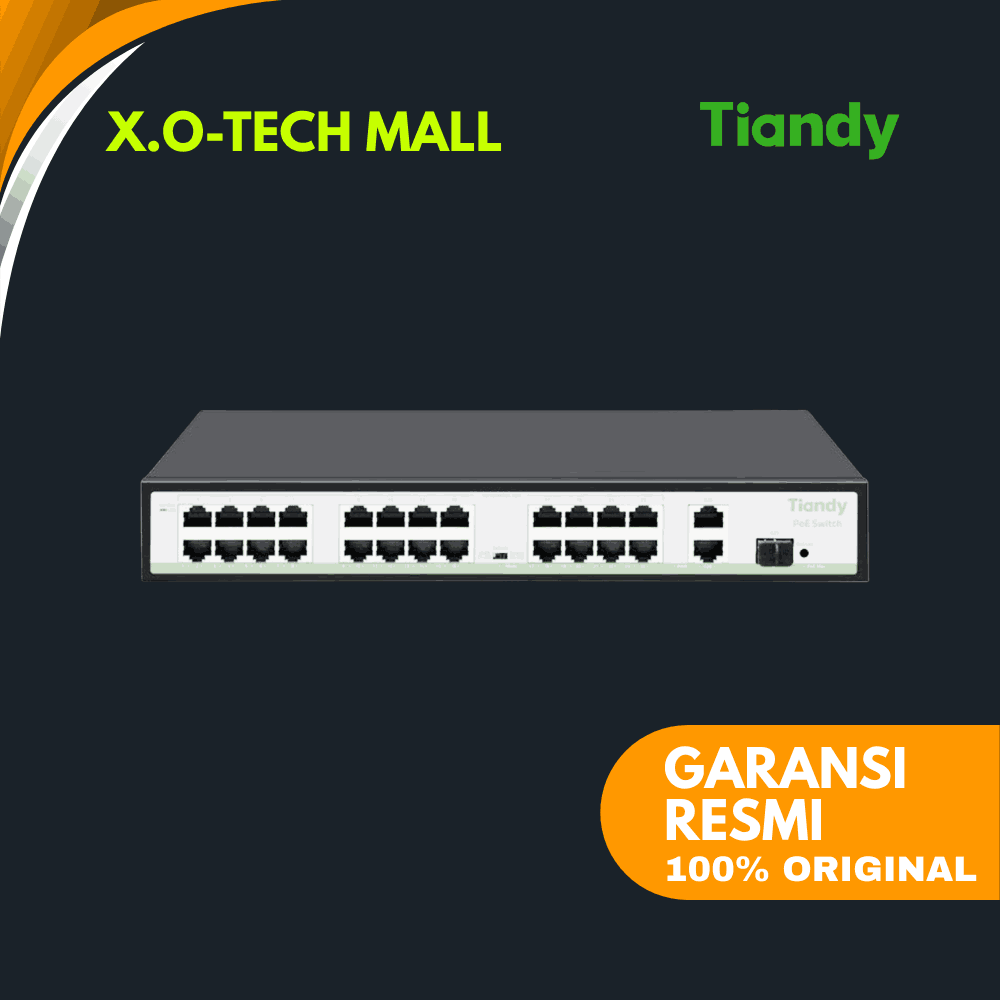

TC-P3S027 Network PoE Switch 27 Channel

Rp2.199.000

Tiandy TC-P3S027

27-Channel Gigabit PoE Switch

24 × PoE Ports (10/100 Mbps) + 2 × Gigabit Ethernet Uplink + 1 × Gigabit SFP Port
Mendukung standar IEEE 802.3 / 802.3u / 802.3ab / 802.3z
Port Ethernet mendukung 10/100 Mbps auto-adaptive
Extend mode: port PoE bisa dipaksa 10 Mbps untuk jangkauan lebih jauh
PoE Priority: prioritas otomatis port 1 → 16 (enabled by default)
Cocok untuk instalasi CCTV skala besar dengan backbone Gigabit

27 Port
24 PoE + 2 Gigabit + 1 SFP
PoE Priority
Extend Mode
IEEE 802.3z

Post Views: 28

27-Channel Gigabit PoE Switch (24 PoE + 2 Uplink + 1 SFP)

Kategori	Detail
Port	24 × PoE 10/100 Mbps 2 × RJ45 Uplink (1 Gbps) 1 × SFP Uplink (1 Gbps) :contentReference[oaicite:2]{index=2}
Standar Jaringan	IEEE 802.3 / 802.3u / 802.3ab / 802.3z – port adaptif 10/100 Mbps :contentReference[oaicite:3]{index=3}
PoE & Fitur Fisik	Extend mode: ports 9–24 dipaksa 10 Mbps & otomatis AI mode aktif PoE Priority: 9→24 secara default aktif Flow control: full-duplex via IEEE 802.3x, half-duplex via back-pressure Zero configuration, panel LEDs monitoring Dip switch 3-gear: VLAN / Default / Extend Modes Surge: CM 4 kV, diff 2 kV; ESD: air 8 kV, contact 6 kV (Level B) :contentReference[oaicite:4]{index=4}
Performa	Bandwidth: 10.8 Gbps Throughput: 8.03 Mpps Packet Buffer: 3 Mbit MAC Table: 2K entries :contentReference[oaicite:5]{index=5}
Lingkungan & Daya	Suhu operasi: –10 °C ~ +50 °C Input daya: AC 100–240 V Non-PoE board: ≤ 6 W \| Total PoE power: ≤ 260 W (52 V / 5.0 A) :contentReference[oaicite:6]{index=6}
Dimensi & Berat	Produk: 320 × 207 × 45 mm Paket: 370 × 290 × 85 mm Berat bersih: 1.61 kg Berat kotor: 2.14 kg :contentReference[oaicite:7]{index=7}
