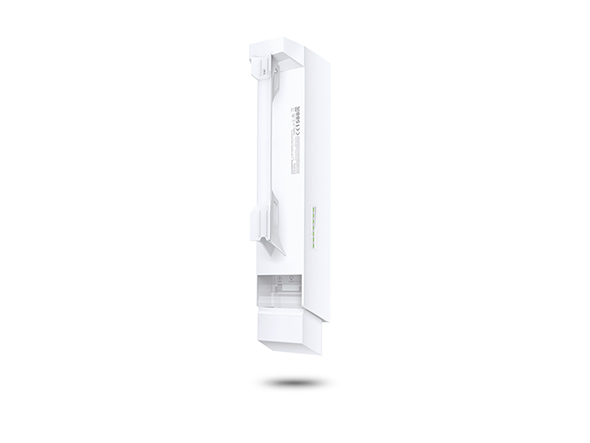

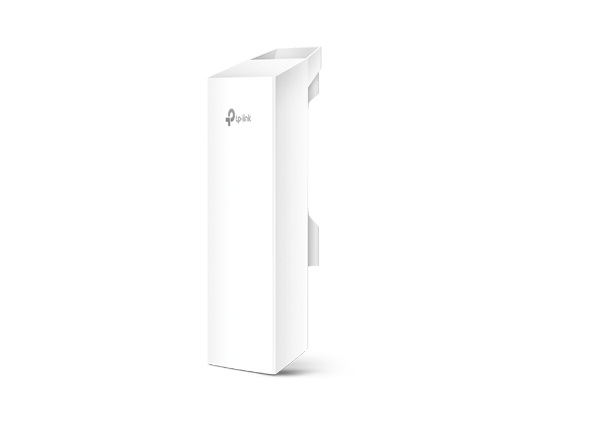

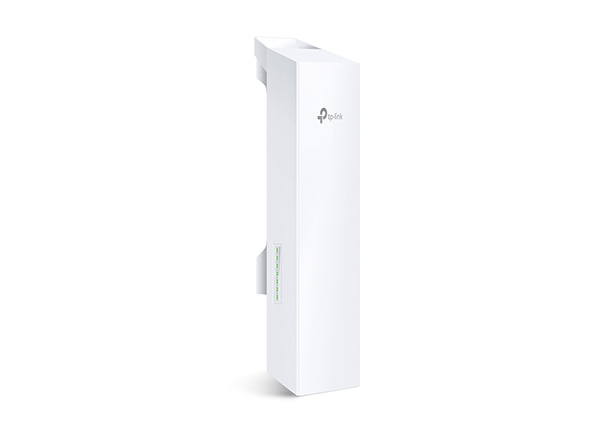

TP-Link CPE220
2.4 GHz 300 Mbps Outdoor Access Point • 12 dBi Directional Antenna • PoE Supported
| Kategori | Spesifikasi |
|---|---|
| Standar Nirkabel | IEEE 802.11 b/g/n (2.4 GHz) Kecepatan hingga 300 Mbps |
| Frekuensi | 2.4 GHz (2400–2483.5 MHz) |
| Antena | 12 dBi directional, polarisasi ganda Sudut beam: H 65° • V 35° |
| Transmisi Daya | Sampai 30 dBm (adjustable) |
| Jangkauan | Point-to-Point hingga ±13 km (ideal kondisi LOS) |
| Mode Operasi | Access Point Client Repeater Bridge AP Router (WISP) |

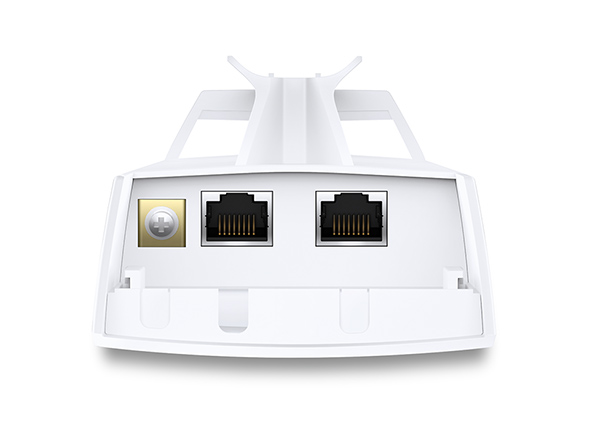

| Port | 1 × 10/100 Mbps Ethernet (PoE-IN) 1 × 10/100 Mbps Ethernet (LAN) |
| Manajemen | Aplikasi: Pharos Control (Windows) Web UI: mendukung VLAN, QoS, Watchdog, Ping Watch |
| Catu Daya | Pasif PoE (24 V, 1 A) – adaptor PoE disertakan Konsumsi daya: maks. 10 W |
| Lingkungan | Proteksi IP65, tahan cuaca outdoor Suhu kerja: −30 °C ~ +70 °C Kelembapan: 10%–90% non-condensing |
| Dimensi & Berat | Dimensi: 224 × 79 × 60 mm Berat: ± 500 g |
| Dalam Kotak | Unit CPE220 ×1 Adaptor PoE 24 V ×1 Kabel Ethernet 0.6 m ×1 Kit pemasangan ×1 Quick Installation Guide ×1 |
