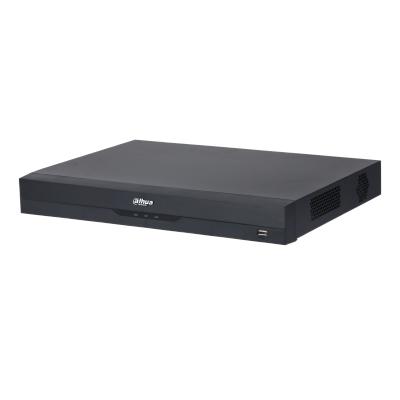

Dahua DH-XVR4216AN-I
16 Channels Penta-brid 720P 1U 2HDD WizSense Digital Video Recorder
| Kategori | Spesifikasi |
|---|---|
| Sistem | Prosesor: Industrial-grade processor OS: Embedded Linux Antarmuka: Web, GUI lokal |
| Deteksi Pintar | SMD Plus by Recorder: 8-channel Filter manusia & kendaraan untuk mengurangi false alarm |
| Input Video | 16 channel BNC, adaptive HDCVI/AHD/TVI/CVBS Resolusi input: 1080p@25/30fps, 720p@25/30fps IP camera input: hingga 18 channel (2 default + 16 mapping) Bandwidth masuk/rekam/keluar: 64 Mbps |
| Output & Display | Output: 1 HDMI, 1 VGA Resolusi: 1920×1080, 1280×1024, 1280×720 Multi-screen: 1/4/8/9/16 |
| Kompresi | Video: AI Coding, H.265+, H.265, H.264+, H.264 Audio: G.711a, G.711u, PCM |
| Audio | Input: 1-channel RCA + 16-channel BNC (Coaxial Audio) Output: 1-channel RCA Two-way talk: Ya (sharing input channel pertama) |
| Perekaman & Playback | Mode: General, Motion Detection, Alarm Playback simultan: 1/4/9/16 channel Backup: via USB & Network Playback Mode: Instant, General, Event, Tag Playback |
| Alarm | General Alarm: motion detection, video loss, tampering Anomaly Alarm: no disk, disk error, low space, IP conflict, MAC conflict Linkage: record, snapshot, buzzer, preset, email |
| Penyimpanan | 2 SATA ports, kapasitas hingga 16 TB (8TB/HDD) 2 × USB 2.0 |
| Jaringan | 1 RJ-45 (10/100 Mbps) Protokol: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P Mobile: iOS & Android Browser: Chrome, Firefox, IE9+ Interoperabilitas: ONVIF 21.06, CGI |
| Dimensi & Berat | Produk: 375 × 289.4 × 53 mm (W × D × H) Kemasan: 433 × 366 × 141 mm Berat netto: 1.61 kg Berat bruto: 2.86 kg |
| Lingkungan | Suhu kerja: –10 °C ~ +55 °C Kelembapan: 0–90% RH Instalasi: Desktop |
| Sertifikasi | FCC Part 15 Subpart B CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024 |
