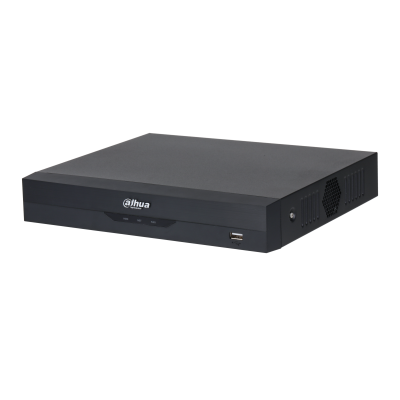

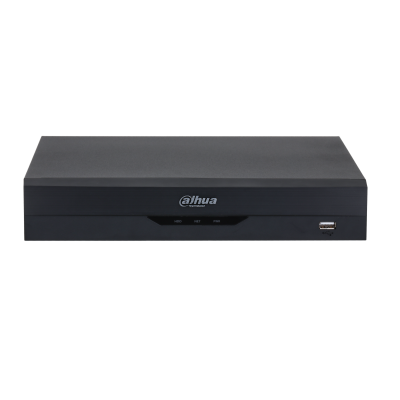

Dahua DH-XVR5104HS-5M-I3
4CH XVR – AI-powered HDCVI Recorder, Smart H.265+, SMD Plus, Face Recognition
| Kategori | Spesifikasi |
|---|---|
| Video Input | 4-channel BNC HDCVI/AHD/TVI/CVBS Mendukung hingga 6-channel IP (maks. 6MP per channel) Total bandwidth masuk hingga 32 Mbps |
| Video Output | HDMI & VGA output, resolusi hingga 1080p |
| AI & Smart Features | 1-channel QuickPick 2.0 4-channel SMD Plus untuk analog / 6-channel by camera (manusia & kendaraan) 4-channel Perimeter Protection (tripwire & intrusion) 1-channel Face Recognition 4-channel AI Coding (hemat bandwidth & storage) |
| Video Compression | Smart H.265+, H.265, H.264+, H.264 |
| Audio | 1-channel input RCA, 1-channel output RCA Audio compression: G.711A, G.711U, PCM |
| Penyimpanan | 1 SATA HDD hingga 8TB |
| Antarmuka | 2 USB 2.0 1 RJ-45 (100 Mbps Ethernet) 1 RS485 |
| Integrasi | Mendukung IoT & POS ONVIF kompatibel |
| Lingkungan Operasional | Suhu: –10 °C ~ +55 °C Kelembapan: 10% – 90% RH |
| Dimensi & Berat | 260 mm × 236 mm × 48 mm (P × L × T) Berat: ± 0.8 kg (tanpa HDD) |
| Power Supply | DC 12V/1.5A Konsumsi: < 10W (tanpa HDD) |
