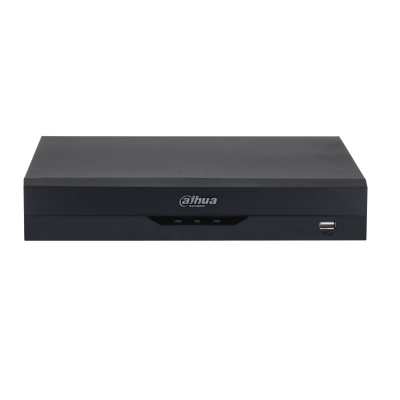

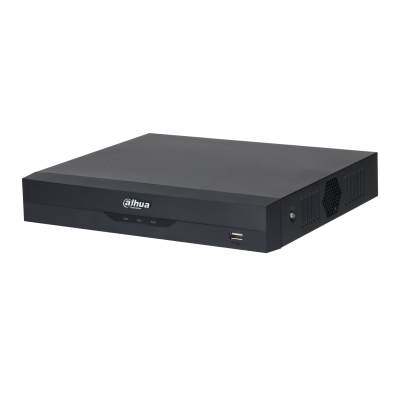

Dahua DH-XVR5116HS-5M-I3
16CH Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder
| Kategori | Spesifikasi |
|---|---|
| Sistem | Prosesor industrial-grade • OS: Embedded Linux • Antarmuka: Web & GUI lokal |
| AI & Analitik | QuickPick 2.0: 2 channel (by recorder) SMD Plus: 16 channel by recorder; hingga 24 channel by camera Perimeter Protection (AI): Advanced Mode 2ch (10 aturan/chan), General Mode 4ch (10 aturan/chan) Face Detection: 2ch (hingga 12 gambar wajah/detik per channel), 6 atribut Face Recognition: 2ch; hingga 10 database/10.000 gambar AI Video Quality Analytics: 16ch (brightness, color cast, defocus, overexposure, contrast, B/W) Scene Changing: 1ch • Irregular Black Block Masking: 1ch |

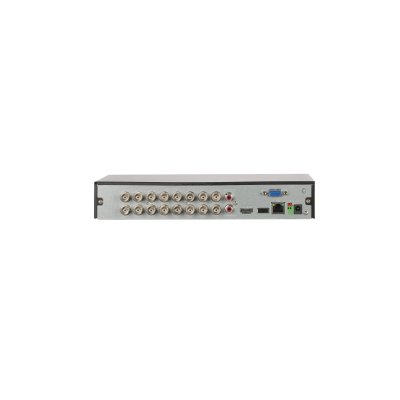

| Video & Audio | Input analog: 16× BNC (auto-detect HDCVI/AHD/TVI/CVBS) Input IP: hingga 24 channel (8 IP default + konversi 16 analog → IP); bandwidth masuk/rekam/keluar hingga 128 Mbps Output: 1× HDMI (hingga 4K) + 1× VGA Audio: 1× RCA in, 1× RCA out, coaxial audio 16 channel; two-way talk (berbagi input audio channel 1) |
| Kompresi & Streaming | Video: AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 • Audio: G.711A/U, PCM • Dual-stream: Ya |
| Rekaman & Playback | Mode rekam: umum, alarm, deteksi gerak, cerdas, POS Playback: 1/4/9/16 • Mode: instant, general, event, tag, smart • Backup: USB & jaringan |
| Jaringan | Protokol: HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, FTP, DDNS, SNMP, UPnP, dll. Catatan: Saat IP extension diaktifkan, fitur AI tertentu (Video Quality Analytics, Scene Changing, Face, SMD, Perimeter, QuickPick) tidak tersedia. |
| Antarmuka | 1× SATA (hingga 16TB) 2× USB (depan USB 2.0, belakang USB 3.0) 1× RS-485 • 1× RJ-45 (10/100/1000 Mbps) • 1× HDMI • 1× VGA |
| Daya & Lingkungan | Catu daya: 12 VDC / 2 A • Konsumsi: < 12 W (tanpa HDD) Operasi: –10 °C s/d +55 °C • Humidity: 10%–90% RH (non-condensing) |
| Dimensi & Berat | 260.0 × 237.8 × 47.6 mm (W × D × H) ≈ 26.0 × 23.78 × 4.76 cm Berat bersih: ± 1.00 kg (≈ 1000 gram) |
| Catatan | Kompatibel multi-format (HDCVI/AHD/TVI/CVBS/IP) • IoT & POS support • HDMI mendukung output 4K |
