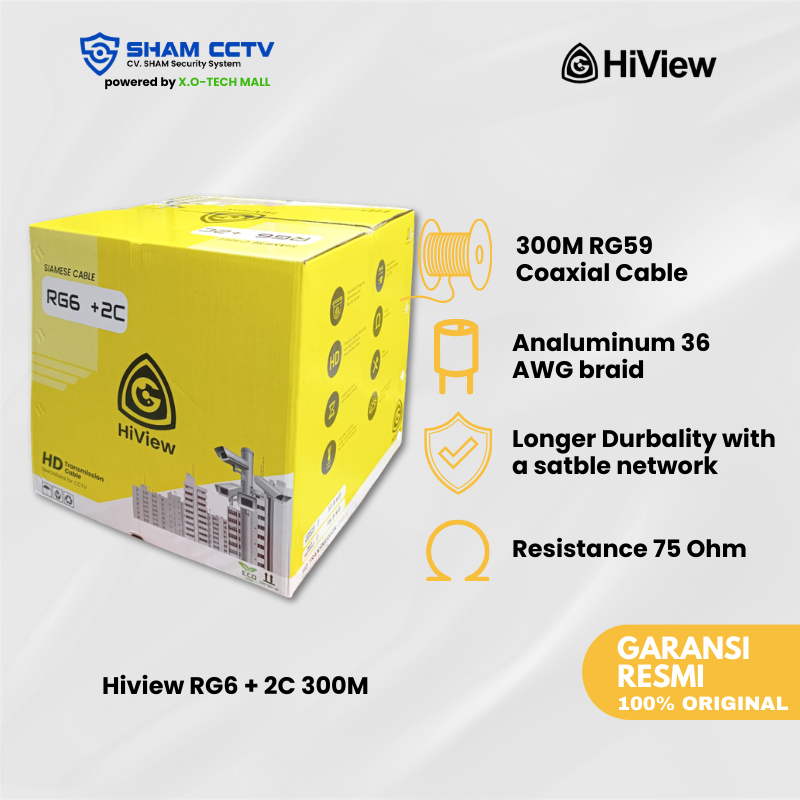

HiView RG6+P – 300 m
Coaxial RG6 75Ω + Power 2C | Low Loss | Shield Rapat | Outdoor/Indoor
| Kategori | Detail |
|---|---|
| Tipe & Panjang | RG6 + Power (Siamese) • 300 meter/gulungan |
| Konduktor Coax | Solid Copper 1.02 mm (≈18 AWG) • Dielectric Foam-PE |
| Shielding | Aluminium Foil + Anyaman 95% (±128 wire × Ø0.12 mm) |
| Impedansi | 75 Ω ± 3 Ω |
| Kabel Power | 2 inti (Merah/Hitam) • 2 × 0.75 mm² (≈18 AWG) Copper |
| Diameter Kabel | Coax Ø ~6.8 mm • Power Ø ~3.0 mm/inti • Bentuk siamese |
| Karakteristik Listrik | Kapasitansi: ~53 pF/m • Velocity of Propagation: ~82% Resistansi DC (center): ≤ 21 Ω/km • (shield): ≤ 15 Ω/km Resistansi DC (power/inti): ≤ 26 Ω/km (tiap inti) |
| Redaman (Attenuation) | 5 MHz: ~1.9 dB/100 m • 50 MHz: ~4.5 dB/100 m 100 MHz: ~5.6 dB/100 m • 500 MHz: ~13.9 dB/100 m 1 GHz: ~19.9 dB/100 m |
| Jaket & Material | PVC Premium (UV Resistant) • Warna: Hitam |
| Aplikasi | CCTV HD (TVI/AHD/CVI), Analog, Modulator RF 75Ω, Receiver TV, DVR/XVR dengan suplai daya kamera terintegrasi |
| Lingkungan Operasional | Suhu kerja: -20°C ~ +70°C • Indoor/Outdoor (dalam conduit) |
| Standar & Penandaan | Penandaan metermark tiap ±1 m • RoHS Compliant |
| Berat Gulungan | ± 12–15 kg / roll (estimasi) |
| Garansi | 1 Tahun Garansi Resmi Hiview |
Gunakan Kode Kupon: SHAMSAVE25
Nikmati Diskon 5% untuk pembelian Hiview RG6+P 300 m hari ini!
Nikmati Diskon 5% untuk pembelian Hiview RG6+P 300 m hari ini!
